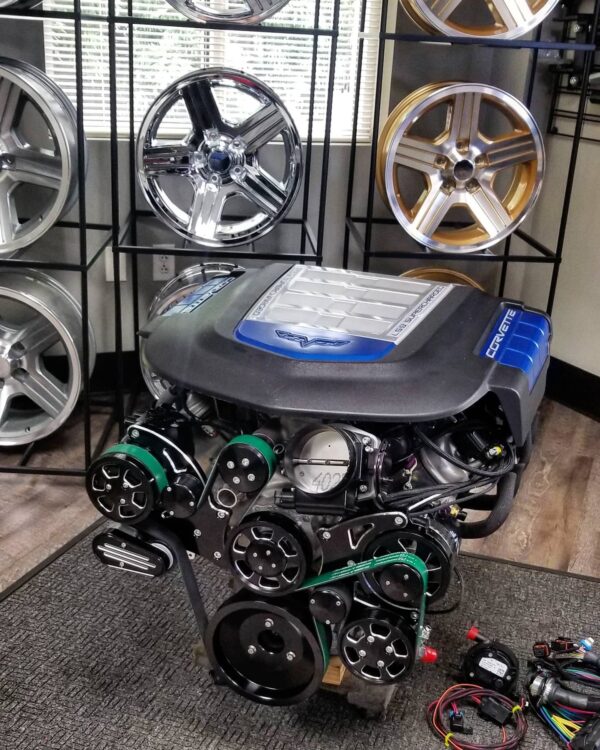

Experience the pinnacle of GM engineering with the legendary Chevrolet Performance LS9 6.2L supercharged V8 crate engine. Originally engineered to power the C6 Corvette ZR1—the ultimate track-dominating supercar of its era—the LS9 is built to deliver massive, effortless power across the entire RPM band.
Featuring an integrated Eaton four-lobe roots-type twin-rotor supercharger pumping out 10.5 psi of boost, the LS9 churns out an astonishing 638 horsepower and 604 lb-ft of torque right out of the box. To handle this immense pressure, the engine is constructed around a robust, reinforced aluminum block with six-bolt main bearing caps, premium forged aluminum pistons, titanium connecting rods, and a forged steel crankshaft.
For high-performance restomods, pro-touring builds, and custom street machines, the LS9 provides supercar performance with factory reliability. Every engine comes fully assembled and ready for installation.
Key Specifications:
-
Engine Family: Gen IV LS-Series Small-Block V8
-
Displacement: 6.2 Liters / 376 Cubic Inches
-
Horsepower: 638 HP @ 6,500 RPM
-
Torque: 604 lb-ft @ 3,800 RPM
-
Supercharger: Eaton 2.3L Four-Lobe Roots-Type (10.5 PSI Boost)
-
Compression Ratio: 9.1:1
-
Bore x Stroke: 4.065 in. x 3.622 in.
-
Block Material: Cast Aluminum with 6-Bolt Cross-Bolted Steel Main Caps
-
Cylinder Heads: Rotocast 356-T6 Aluminum (High-Flow Rectangular Ports)
-
Valvetrain: Titanium Intake Valves & Hollow-Stem Exhaust Valves
-
Connecting Rods: Forged Titanium I-Beam
-
Lubrication System: Dry-Sump (Requires External Tank)
Package Includes:
-
Complete LS9 6.2L Supercharged Engine Assembly
-
Integrated Eaton Supercharger with Intercooler & Throttle Body
-
High-Flow Fuel Rails and Injectors
-
Forged Steel Crankshaft, Forged Pistons, and Titanium Rods
-
Dry-Sump Oil Pan and Integrated Scavenge Pump
-
Ignition Coils, Spark Plug Wires, and Valve Covers
-
Water Pump, Harmonic Balancer, and Accessory Drive Brackets
