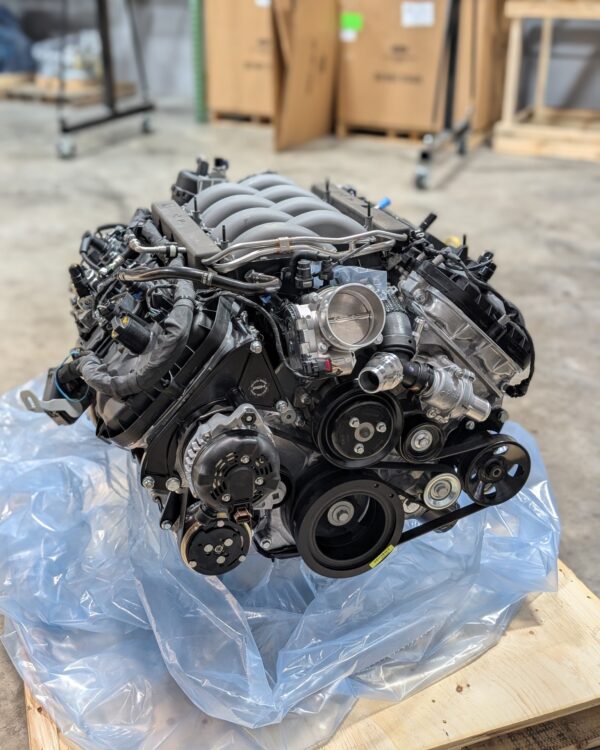

Gen 4 Coyote crate engine built for Ford Mustang projects, restomods, classic muscle cars, and custom performance builds. Based on the fourth-generation 5.0L Coyote V8 introduced with the S650 Mustang GT platform, this engine is factory-rated at 480 horsepower at 7,150 RPM and 415 lb-ft of torque at 4,900 RPM.
The Gen 4 5.0L Coyote features dual 80mm electronic throttle bodies and a combined direct- and port-injection fuel system. Its DOHC 32-valve V8 architecture also incorporates Twin Independent Variable Cam Timing (Ti-VCT), a forged steel crankshaft, and sintered steel connecting rods.
The engine uses an aluminum block with plasma-transferred wire arc (PTWA) cylinder bore coatings and 12mm head bolts. With its high-revving 5.0L architecture and updated fuel and induction systems, the Gen 4 Coyote provides a modern Ford powerplant for compatible performance and swap applications.
Gen 4 Coyote Crate Engine Specifications
- Engine: Ford Gen 4 5.0L Coyote V8
- Displacement: 5.0L / 307 cubic inches
- Horsepower: 480 HP at 7,150 RPM
- Torque: 415 lb-ft at 4,900 RPM
- Bore: 93mm
- Stroke: 92.7mm
- Architecture: DOHC 32-valve V8
- Valve Timing: Twin Independent Variable Cam Timing (Ti-VCT)
- Throttle Bodies: Dual 80mm electronic drive-by-wire throttle bodies
- Fuel Injection: Direct and port injection
- Crankshaft: Forged steel
- Connecting Rods: Sintered steel
- Block: Aluminum with PTWA cylinder bore coatings
- Included: Engine wiring harness and manual-transmission flywheel
- Automatic Option: Flexplate options available
Built for Modern Ford Swaps
This 5.0L Coyote crate engine provides a fourth-generation Coyote platform for compatible Mustang builds, restomods, classic cars, and custom performance projects. The included engine wiring harness helps with integration into a compatible swap, while the available flywheel or flexplate configuration allows the engine to be matched to the selected transmission setup.
Before purchasing, verify compatibility with your specific application, including engine management, transmission, wiring, engine mounts, fuel system, cooling system, exhaust, accessory configuration, and other required swap components.
Contact CBL Auto Shop for current specifications, included components, transmission compatibility, availability, shipping details, and applicable warranty coverage.
