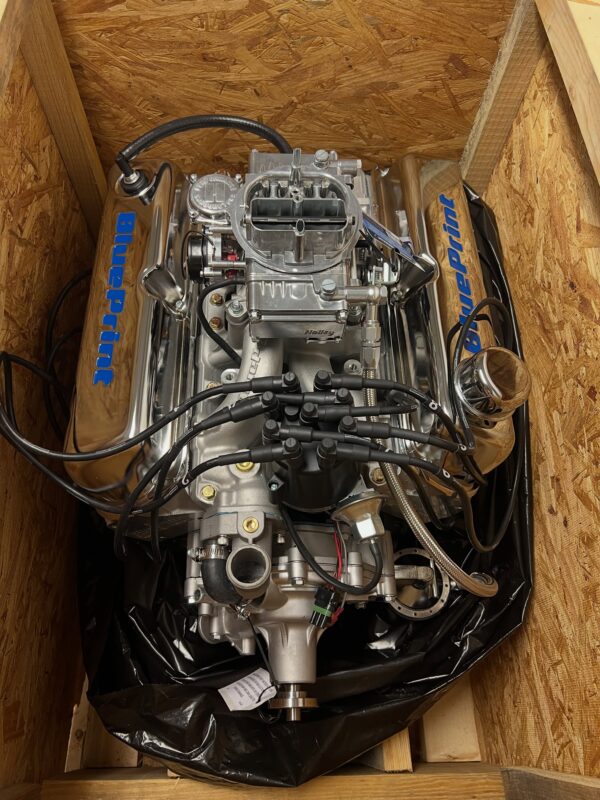

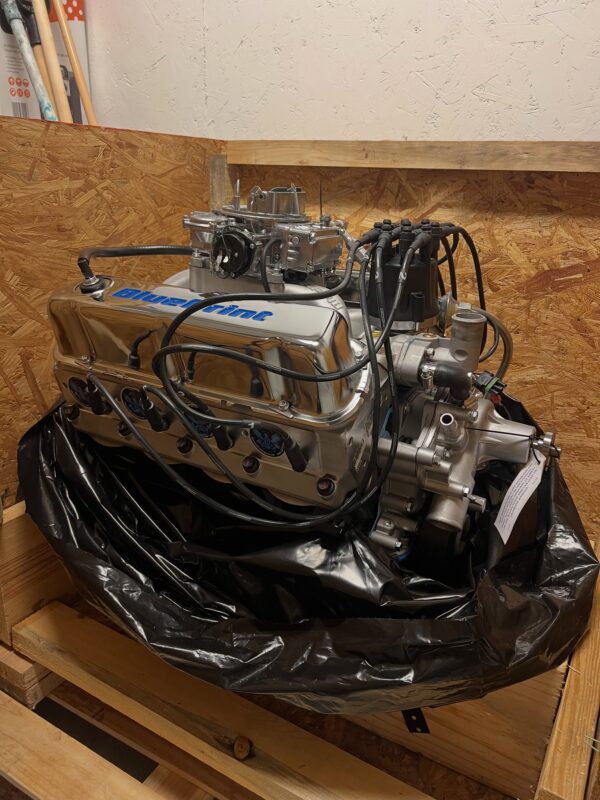

Ford 302 crate engine from BluePrint Engines, built for classic Ford Mustangs, trucks, restomods, hot rods, and custom performance projects. This 302 cubic-inch small-block Ford V8 is rated at 361 horsepower and 334 lb-ft of torque, providing a practical combination of street performance and classic Ford V8 character.
The 302 Ford small block uses a new high-strength cast iron engine block with increased deck thickness, robust internal webbing, priority main oiling, and 4-bolt main caps. The engine is equipped with BluePrint aluminum cylinder heads and a hydraulic roller camshaft designed to provide a broad power range for street-oriented applications.
With a 9.4:1 compression ratio, the engine is designed to operate on 87-octane pump fuel. The rotating assembly includes a cast steel crankshaft and hypereutectic pistons, while the aluminum cylinder heads feature 60cc combustion chambers, 2.02-inch intake valves, and 1.60-inch exhaust valves.
Ford 302 Crate Engine Specifications
- Engine: BluePrint Engines 302 cubic-inch Ford small block
- Displacement: 302 cubic inches
- Horsepower: 361 HP
- Torque: 334 lb-ft
- Compression Ratio: 9.4:1
- Recommended Fuel: 87-octane pump fuel
- Block: New high-strength cast iron
- Main Oiling: Priority main oiling
- Main Caps: 4-bolt
- Cylinder Heads: BluePrint aluminum heads
- Combustion Chambers: 60cc
- Intake Valves: 2.02 inches
- Exhaust Valves: 1.60 inches
- Camshaft: Hydraulic roller
- Cam Lift: .533 intake / .544 exhaust
- Duration @ .050: 215 intake / 220 exhaust
- Lobe Separation Angle: 114°
- Crankshaft: Cast steel
- Pistons: Hypereutectic
- Warranty: BluePrint component warranty
Built for Classic Ford Applications
This Ford 302 crate motor provides a new small-block Ford powerplant for compatible classic Mustangs, Ford trucks, hot rods, restomods, and custom builds. Depending on the configuration, 302 small block Ford engine packages can be supplied as long blocks or more complete setups with fuel injection and accessory-drive components.
Before purchasing, verify the configuration and compatibility requirements for your specific vehicle, including engine mounts, transmission, oil-pan clearance, fuel system, cooling system, exhaust, accessory configuration, and available engine-bay space.
Contact CBL Auto Shop for current specifications, included components, available configurations, compatibility information, shipping details, and warranty coverage.
